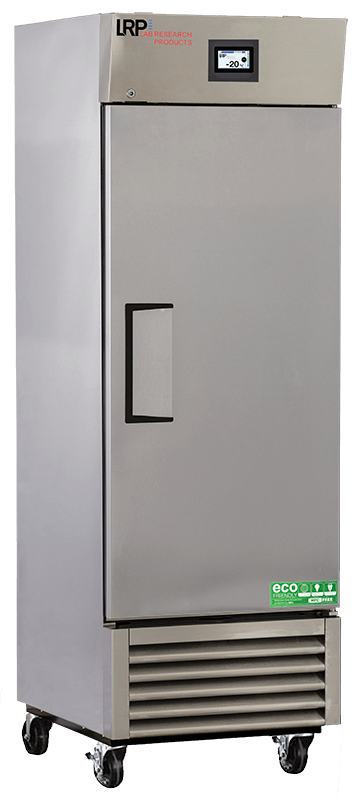

23 Cubic Foot TempLog Plus Solid Door Pharma Laboratory Freezer

Product Number: LRP-AFPP-23-TS

LRP_GreenLeaf

The TempLog Plus Series Solid Stainless Steel Validation Laboratory Freezers are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller, a forced air directional refrigeration system, and provide excellent temperature uniformity and recovery after door openings. Auto defrost freezer models have programmed defrost cycles that will reach air temperatures of approximately 0 degrees Celsius.

The all-new Touch Screen temperature display and alarm module offers industry-leading product security real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual alarms, remote alarm contacts, a 4-20mA output and an access port. A USB port is provided for easy data transfer.

In addition, we provide multi-point temperature mapping via LRP’s NIST traceable data acquisition equipment assuring reproducible operation. if provided with a Requirements Document, LRP will make every effort to fulfill or exceed each condition.

Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

Details Specifications Temp Controller

23 Cu. Ft. Capacity
One swing stainless steel door
Multi-Point temperature mapping via NIST traceable data acquisition, 15 probes in air and 3 probes in sample solution for 360 minutes with temperature readings every 60 seconds
Three shelves (adjustable in ½” increments)
Keyed door lock
Magnetic door gasket for positive seal
Recessed door handle
Swivel casters (adds 5″ to height)
Interior light
HFC-free refrigerant (R290), foam insulation and packaging
Three year parts and labor warranty, plus an additional two year compressor parts warranty.
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer

Exterior dimensions:
Width: 27”
Depth: 30 ¾“
Height: 83 ¼” with casters; 78 ¼” without casters
Auto defrost
115V, 60 Hz, 3.7 Amps,1/2 HP, BTU/HR 4932
UL/C-UL listed
Shipping weight: 310 lbs

Microprocessor temperature controller
Adjustable operating temperature range: -15°- -25°C
Touch Screen Digital Temperature Display and Alarm Module
Password-protected control panel
Sample simulated digital temperature display; .1° Resolution, adjustable temperature
display in Celsius or Fahrenheit
Active temperature scale bar display
Resettable 1-point min/max history
Digital 24-hour temperature chart
Temperature data logging
USB port for data transfer and software updates
Real-time operational display clock
4-20mA output
Electronic troubleshooting guide
Electronic QR Code to access Owner’s Manual & technical support contact Information
Adjustable alarm volume
Audible and visual high/low temperature alarms
Sensor error alarm
Power failure alarm
Door ajar alarm
Low battery alarm
Operation indicator
Alarm validation (audible, visual, and remote alarm)
Alarm mute with ring back
Remote alarm contacts
