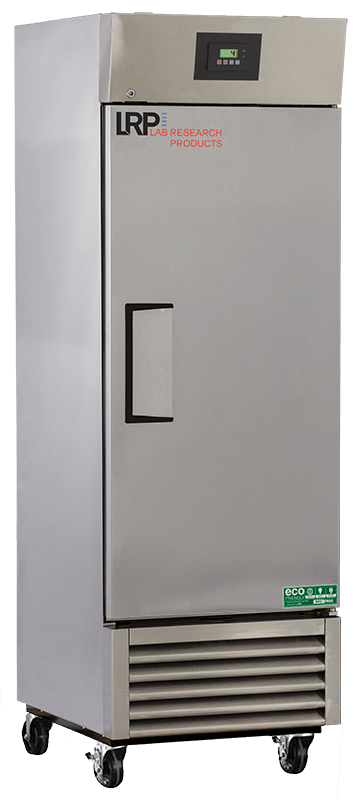

23 Cubic Foot Plus Series Stainless Steel Auto Defrost Laboratory Freezer

Product Number: LRP-AFPP-23

LRP_GreenLeaf

The Plus Series Stainless Steel Validation Freezers are performance qualified to help satisfy qualification and validation requirements. These units feature a microprocessor temperature controller and display which allows for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. The Plus Series Stainless Steel Freezers are also purpose built for critical cold storage applications, but where built-in data logging functionality may not be a necessity.

Critical samples and supplies are security backed with an extensive package of audible and visual alarms. Auto defrost freezer models have programmed defrost cycles that will reach air temperatures of approximately zero degrees Celcius.

In addition, we provide multi-point temperature mapping via LRP’s NIST traceable data acquisition equipment assuring reproducible operation. if provided with a Requirements Document, LRP will make every effort to fulfill or exceed each condition.

Lab Research Products is Going Green! We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.

Details Specifications Temp Controller

One swing stainless steel door
Multi-Point temperature mapping via NIST traceable data acquisition, 15 probes in air and 3 probes in sample solution for 360 minutes with temperature readings every 60 seconds
Digital Temperature Display & Alarm Module:
Three shelves (adjustable in ½” increments)
Keyed door locks
Magnetic door gasket for positive seal
Recessed door handle
Swivel casters (adds 5″ to height; included in dimensions)
Interior light
Probe access port (3/8″)
300 Series stainless steel interior/exterior
High density urethane foam cabinet and door insulation
HFC-free refrigerant (R290), foam insulation and packaging
Two year parts and labor warranty, plus an additional three year compressor parts warranty
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer

Exterior dimensions:
Width: 27”
Depth: 30 ¾“
Height: 83 ¼” with casters; 78 ¼” without casters
Auto defrost
115V, 60 Hz, 3.7 Amps,1/2 HP, BTU/HR 4932
UL/C-UL listed
Shipping weight: 310 lbs.

Microprocessor Temperature Controller
Adjustable operating temperature range: -15°-25°C
Sample simulated digital temperature display; .1° Resolution
Adjustable temperature display in Celsius or Fahrenheit
Audible and visual high/low temperature alarms
Sensor error alarm
Power failure alarm
Resettable 1-point Min/Max History
Remote alarm contacts
Alarm validation (audible, visual, and remote alarm)
Alarm mute with ring back
