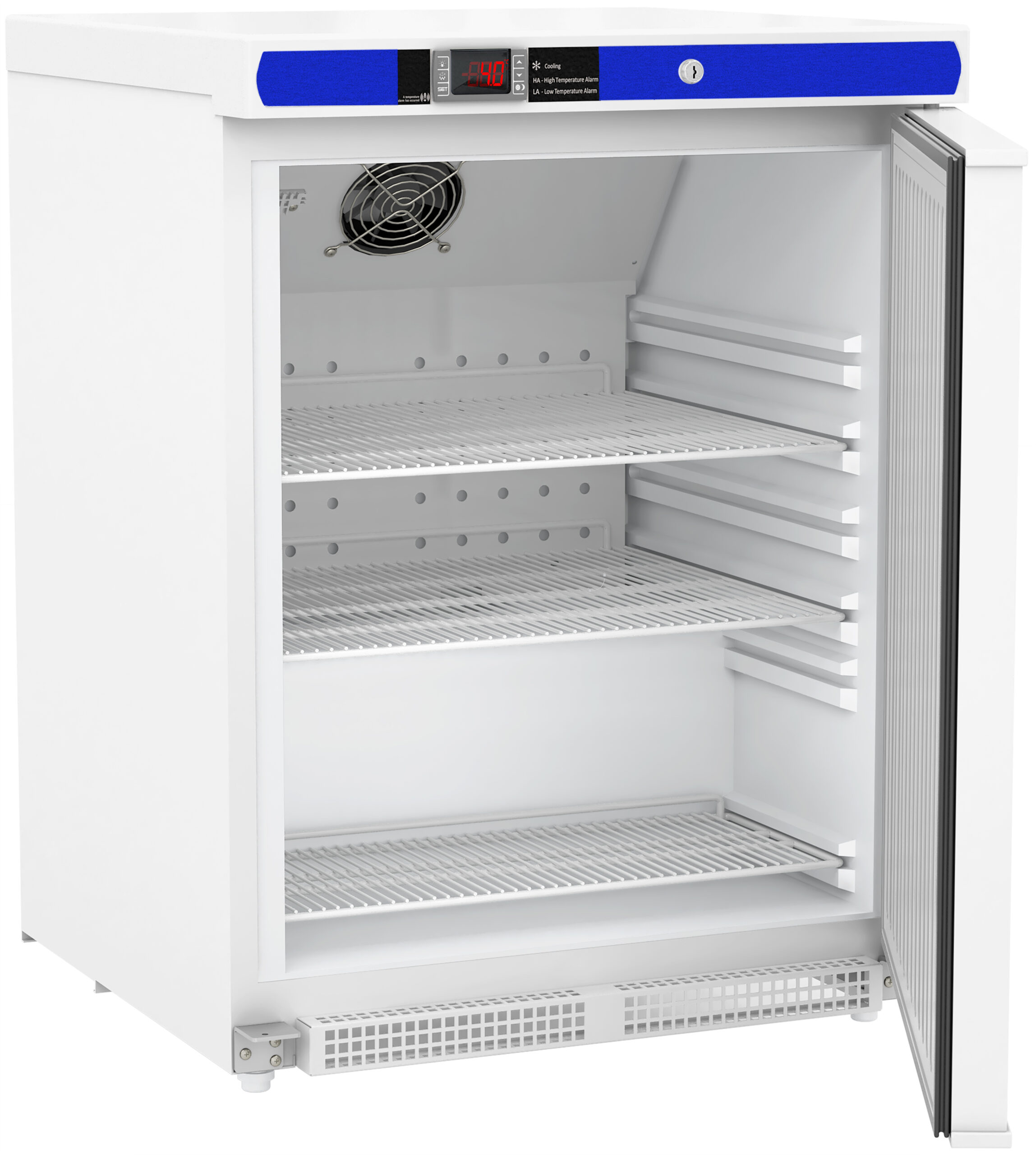

4.6 Cubic Foot Plus Series Undercounter Refrigerator Built-In ADA, Solid Door

Product Number: LRP-HC-UCBI-0404-ADA

energystarULLRP_GreenLeaf

The Plus Series Built In Undercounter Refrigerators feature a microprocessor temperature controller and display, which allows for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

The Built-In models are designed with a “front breathing” ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

Glass, Solid and Stainless Steel models are available in a variety of sizes.

Lab Research Products is Going Green!  We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants, R290 or R600a.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.


Details
  • 4.6 Cu. Ft. Capacity
  • One glass swing door, right hinged*
  • Three shelves (two adjustable/one fixed) with guard rail on back to prevent product from pushing against back wall
  • Back wall evaporator cover
  • Forced draft circulation
  • Keyed door lock
  • Magnetic door gasket for positive seal
  • Heavy duty door handle
  • Leveling legs
  • HFC-free refrigerant (R600a), foam insulation and packaging
  • Two year parts and labor warranty, plus an additional three year compressor parts only warranty
  • Energy Star Certified

  • Exterior dimensions:
    Width: 23 ¾”
    Depth: 24 ½”
    Height: 31 15/16″
  • Cycle defrost
  • 115V, 60 Hz, 1.74 Amps, 1/8 HP
  • ADA compliant
  • UL/C-UL listed
  • Shipping weight:  150 lbs

  • Microprocessor temperature controller
  • Digital temperature display
  • Audible and visual high and low temperature alarms
  • Remote alarm contacts
  • 2 probes; 1 in air and 1 in glycol bottle
  • Adjustable operating temperature range:  1°C to 10°C
