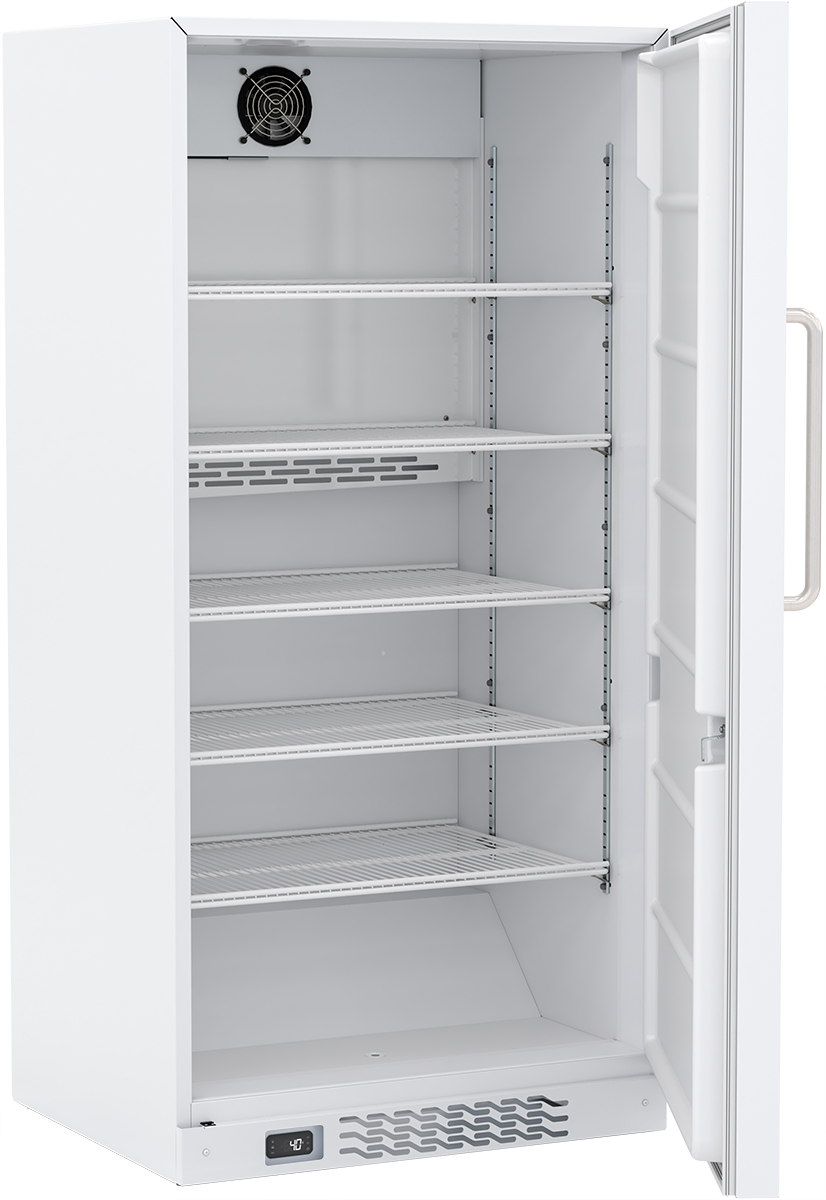

Solid door, open, shelves showing, upright refrigerator

30 Cubic Foot Basic Series Laboratory Refrigerator Solid Door

Product Number: LRP-HC-30R

Designed for reliable and eco-conscious laboratory storage, this 30 cu. ft. standard laboratory refrigerator offers versatile performance for lab environments. Its temperature control is powered by microprocessor technology and protected by audible and visual alarms. It maintains tight temperature uniformity with an adjustable operating range of 2°C to 10°C. Utilizing hydrocarbon refrigerants, this unit meets EPA SNAP compliance, protecting environmental safety. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. This unit offers 30 cubic feet of spacious storage and five adjustable shelves for versatile organization. With a low energy consumption and environmental benefits, the LRP-HC-30R is an efficient and dependable solution for general laboratory applications.

Description Performance Temp Controller

Storage capacity (cu. ft)	30 Cu. Ft.
Door	One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves	Five adjustable
Drawers	Non-applicable
Mounting and Installation	Leveling Legs
Interior lighting	Non-applicable
Airflow Management	Forced draft circulation
External probe access	3/4″ probe access port on rear wall
Insulation	EPA compliant high density urethane foam
Exterior materials	Powder coated steel
Access control	Keyed Door Lock
General warranty	Two (2) year parts and labor warranty
Compressor warranty	Five (5) year compressor parts warranty
Product Weight (lbs)	330
Shipping Weight (lbs)	360
Rated Amperage	3.1 Amps
Power Plug/Power Cord	NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement	110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification	UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard

Uniformity (Cabinet air)

+/- 1.6°C

Stability (Cabinet air)

+/- 1.0°C

Maximum temperature variation

3.6 °C Total

(Cabinet air)

Energy Consumption (KWh/day)

< 1.5 KWh/day

Average Heat Rejection (BTU/hr)

500 BTU/hr

Pull down time to nominal operating temp

<35 min (empty)

Width (in.)

35.75″

Depth (in.)

35.5″

Height (in.)

72.5″

Refrigerant

EPA SNAP compliant R600a Isobutane

Controller technology

Microprocessor temperature controller with variable frequency compressor control

Battery Backup

Optional accessory

Display Probe

Product simulator bottle with glass bead media

Digital Communication

Non-applicable

Data Transfer

Non-applicable

Temperature Setpoint Range Notes

Minimum temperature limited to avoid freezing

Adjustable Temperature Range

2°C to 10°C

External alarm connection

Remote alarm contacts

Alarms

Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts

Disclaimers

Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
