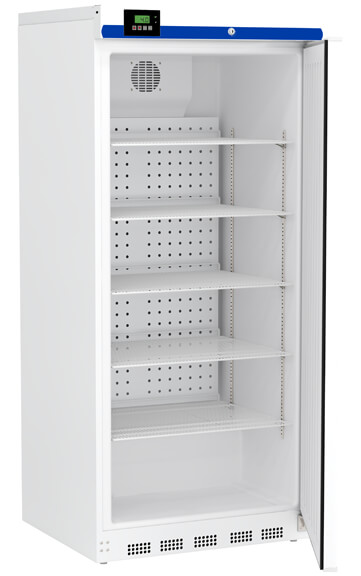

17 Cu. Ft. Plus Series Flammable Storage Refrigerator

Product Number: LRP-HC-FRP-17P

intertek-etl-listed-us-mark-seeklogo.comLRP_GreenLeaf


Flammable storage refrigerators meet the requirements of NFPA 45 and NFPA 30 for cold storage of flammable and combustible materials in unclassified laboratory locations. Utilizes non-sparking and/or ATEX rated components to ensure an intrinsically safe interior for flammable materials in sealed containers. These units feature temperature alarms, keyed door locks, interior shelving, probe access, and microprocessor temperature control.

Our Plus Series refrigerators include premium additions such as extensive alarm systems and digital touch pad displays. All units run on natural, hydrocarbon refrigerant for environmental health and energy efficiency.

Door Solid, right hinged, magnetic door gasket for positive seal
Shelves 5 Adjustable
Mounting Leveling Legs
Airflow management Forced draft circulation
External probe access Rear wall port (3/4″) dia.
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access Control Keyed door lock
General warranty Two (2) year parts and labor warranty
Compressor Parts Warranty Five (5) year compressor parts warranty
Warranty Disclaimer Products require 4” of clearance around back and sides of the unit for proper ventilation – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure





Rated Amperage 3 Amps
Power Plug/Power Cord NEMA 5-15 Plug, conforms to UL471 requirements
Facility Electrical Requirement 115V, 60 Hz
Agency Listing and Certification ETL Listed
Refrigerant R600a
Defrost Cycle




Controller technology Microprocessor temperature controller with digital temperature display, °C/°F switchable
Display technology Bi-Colored LED display and alarm module with .1°C resolution, touchpad controls, resettable 1-point min/max history
Adjustable Temperature Range 1°C to 10°C
External alarm connection State switching remote alarm contacts
Alarms Audible and visual high and low temperature alarms, sensor error alarm, power failure alarm, alarm validation (audible, visual, and remote alarm), and alarm mute with ring back
Controller probe 2 Probes; 1 in air and 1 in sample bottle
Disclaimers These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist Indoor use only, +18°C to +26°C (+65°F to +78°F), <70% RH
Specifications are subject to change
