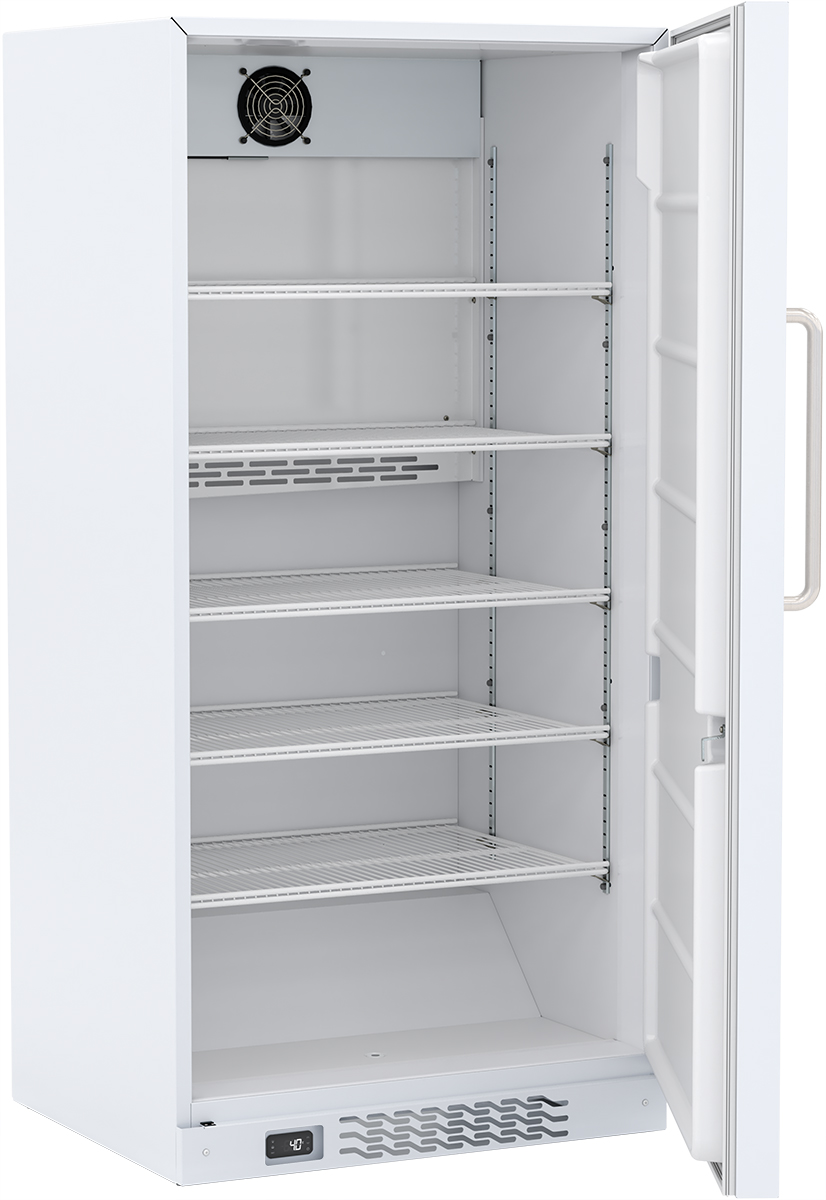

Open solid door flammable storage refrigerator, shelves showing

30 Cubic Foot Flammable Storage Refrigerator Basic Series with Natural Refrigerants

Product Number: LRP-HC-FRS-30

This 30 cu. ft. flammable storage refrigerator offers a secure solution for storing volatile materials in laboratory and industrial settings. Utilizing EPA SNAP compliant hydrocarbon refrigerants, this unit minimizes environmental impact while maximizing energy efficiency. This refrigerator provides precise temperature control through microprocessor technology. Enjoy tight temperature uniformity with an operation range of 2°C to 10°C. It features a durable white powder-coated steel exterior, with a keyed door lock for added security. Adjustable interior shelving allows for versatile organization. Keep your samples protected with audible and visual high/low-temperature alarms and a door ajar alarm with remote contacts. With its low energy consumption and enhanced safety features, the LRP-HC-FRS-30 delivers reliable operation for the safe storage of flammable substances.

Description Performance Temp Controller

Storage capacity (cu. ft)	30 Cu. Ft.
Door	One solid swing, right hinged; stainless steel door handle; magnetic door gasket
Shelves	Five adjustable
Drawers	Non-applicable
Mounting and Installation	Leveling Legs
Interior lighting	Non-applicable
Airflow Management	Forced draft circulation
External probe access	3/4″ probe access port on rear wall
Insulation	EPA compliant high density urethane foam
Exterior materials	Powder coated steel
Access control	Keyed Door Lock
General warranty	Two (2) year parts and labor warranty
Compressor warranty	Five (5) year compressor parts warranty
Product Weight (lbs)	330
Shipping Weight (lbs)	360
Rated Amperage	3.1 Amps
Power Plug/Power Cord	NEMA 5-15P plug, 6 ft long cord
Facility Electrical Requirement	110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification	UL listed per UL 60335-1 and UL 60335-2-89 standards; c UL listed per CSA C22.2 No. 120 standard, in compliance with the requirements for Flammable Materials Storage Refrigerators as defined by NFPA 99 and 45

Uniformity (Cabinet air)

+/- 1.6°C

Stability (Cabinet air)

+/- 1.0°C

Maximum temperature variation

3.6 °C Total

(Cabinet air)

Energy Consumption (KWh/day)

< 1.5 KWh/day

Average Heat Rejection (BTU/hr)

500 BTU/hr

Pull down time to nominal operating temp

<35 min (empty)

Width (in.)

35.75″

Depth (in.)

35.5″

Height (in.)

72.5″

Refrigerant

EPA SNAP compliant R600a Isobutane

Controller technology	Microprocessor temperature controller with variable frequency compressor control
Battery Backup	Optional accessory

Digital Communication	Non-applicable
Data Transfer	Non-applicable
Temperature Setpoint Range Notes	Minimum temperature limited to avoid freezing
Adjustable Temperature Range	2°C to 10°C
External alarm connection	Remote alarm contacts
Alarms	Audible and visual high/low-temperature alarms, Door ajar alarm, Remote alarm contacts
Display Probe	Product simulator bottle with glass bead media
Disclaimers	Refrigerator requires a minimum 4” of clearance around back and sides of the unit for proper ventilation (more if next to heat rejecting equipment) – improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure
